EXPOL – SLABX200 POLYSTYRENE BOARD

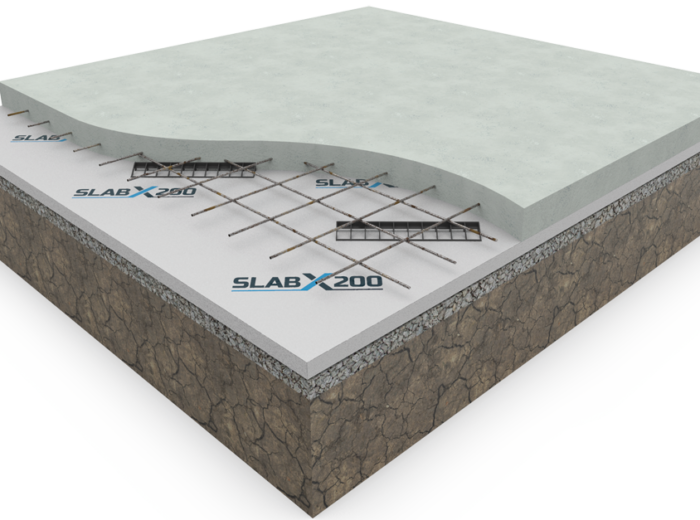

SLABX200 is EXPOL’s new generation high performance Expanded Polystyrene Board specifically designed to deliver high compressive strength and
improve insulation under concrete slabs.

It delivers an uncompromised compressive strength of 200kPa @ 10% deformation and exceptional Insulation Values. Specifically engineered for residential and commercial projects, its high performance gives engineers and specifiers peace of mind while increasing the thermal performance of a building.

EXPOL – SLABX200’s durable nature means it will not degrade over time keeping its integrity for the life of the structure.

Available North Island Only.

EXPOL - NEW GENERATION PRODUCTS

EXPOL SLABX200 Concrete Floor Insulation 2400 x 1200

EXPOL-SlabX200-Product-high Performance 200kPa Rated Insulation For Concrete Slabs

EXPOL SlabX200 high performance 200kPa Rated Insulation for Concrete Slabs

EXPOL SlabX200 high performance 200kPa Rated Insulation for Concrete Slabs

EXPOL-SlabX200-Product-high Performance-200kPa Rated

EXPOL-SlabX200-Expanded-Polystyrene-Board-Insulation-Concrete-Slab


EXPOL SLABX200 (EPS – Expanded Polystyrene) can be easily recycled.





The benefits:

  • Uncompromised compressive strength 200kPa @ 10% deformation
  • Exceptional Insulation Values
  • High water resistance
  • Lightweight and easy to handle
  • Various thicknesses from 50mm to 600mm
  • SLABX200 waste is actively recycled into other EXPOL products

MANUFACTURING STANDARD

All products and grades of Expanded Polystyrene supplied by EXPOL for retaining walls, concrete floors, pod floors, skillion roofs, cladding insulation, wall insulation, lightweight fill comply with manufacturing standard AS 1366 Part 3 1992.

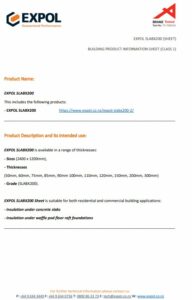

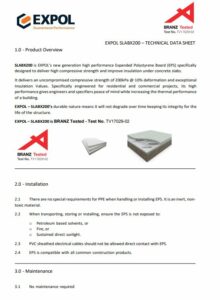

Download Technical Data Sheet

SLABX200 is used for:

EXPOL-SlabX200-Product-high performance-200kPa Rated

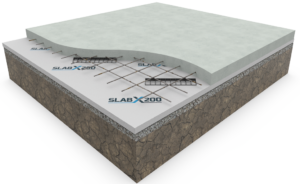

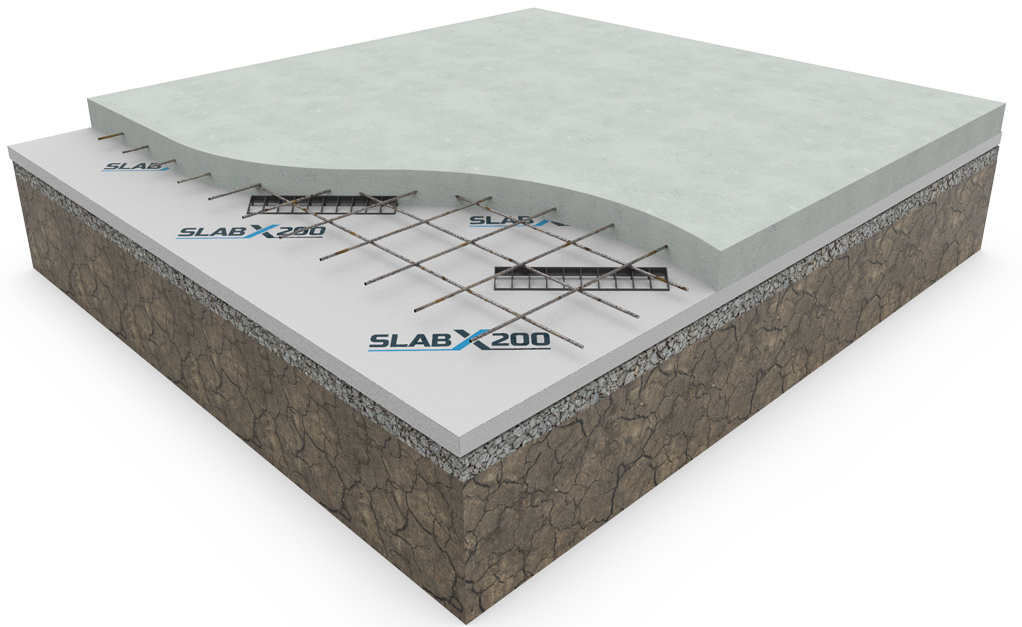

   Concrete Floor Insulation

EXPOL ThermaSlab

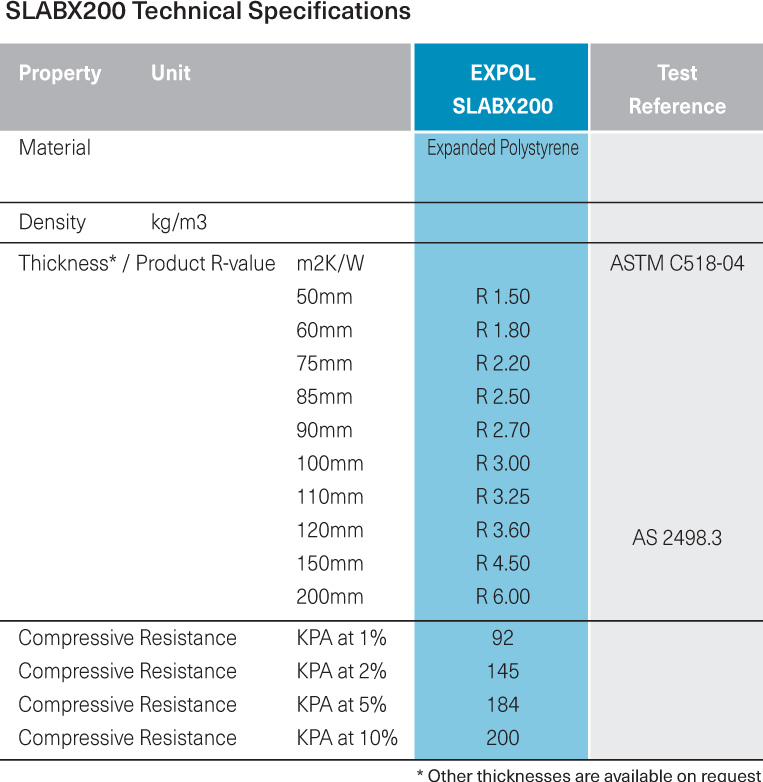

Product Properties

Refer to the solutions above recommended for EXPOL – SLABX200.
Click to enlarge table information.

EXPOL ThermaSlab

FAQs

What is R-Value?

An R-Value is a rating which measures how well insulation can resist heat flow. ‘R’ stands for thermal resistance.

  • R-Value level depends on a number of things such as the type
    of material, its density and thickness.
  • Higher R-Value = Better insulation.

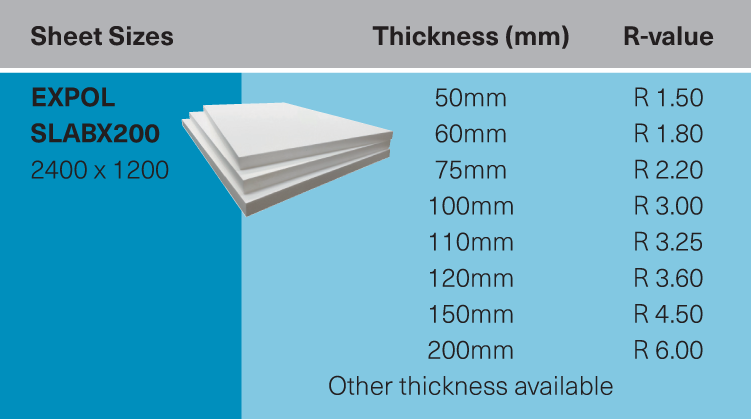

What size board is EXPOL SLABX200 available in?

EXPOL SLABX200 is available in 2400 x 1200 sheet sizes.

Does SLABX200 come in a range of different thicknesses?

Yes. SLABX200 is available in 20mm, 25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 60mm, 65mm, 70mm, 75mm, 80mm, 85mm, 90mm, 100mm, 110mm, 120mm, 150mm, 200mm.

How strong is EXPOL SLABX200?

EXPOL SLABX200 has a kPa at 10% of 200.
