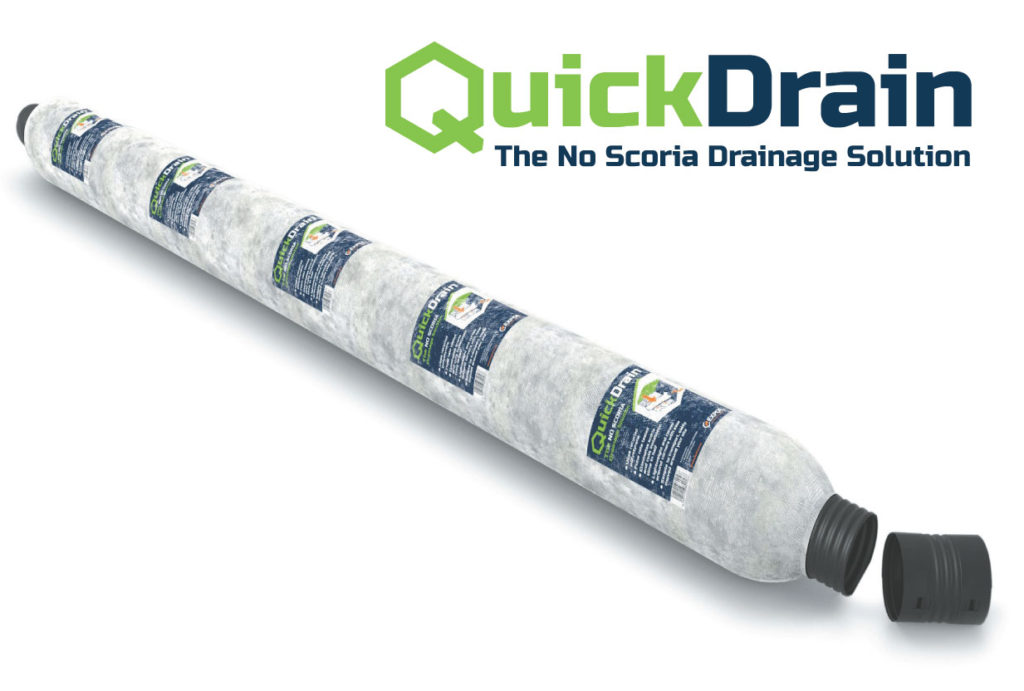

EXPOL QUICKDRAIN

EXPOL QuickDrain is the no-scoria drainage solution made with recycled polystyrene aggregate.

The QuickDrain solution is designed for the economic removal of excess ground water in residential and commercial non-traffic applications. It is ideal to be used in retaining walls, water logged backyards and perimeter drainage around houses and sections.

QuickDrain comes ready to go. It is sold in 2.5 metre lengths and is approximately 200mm in diameter. Every 2.5m length of QuickDrain is supplied with one joiner, one cable tie and instructions how to cut, join and install.

QuickDrain is an engineered drainage solution that provides a scoria-free alternative to traditional scoria drainage solutions, cutting installation time in half.

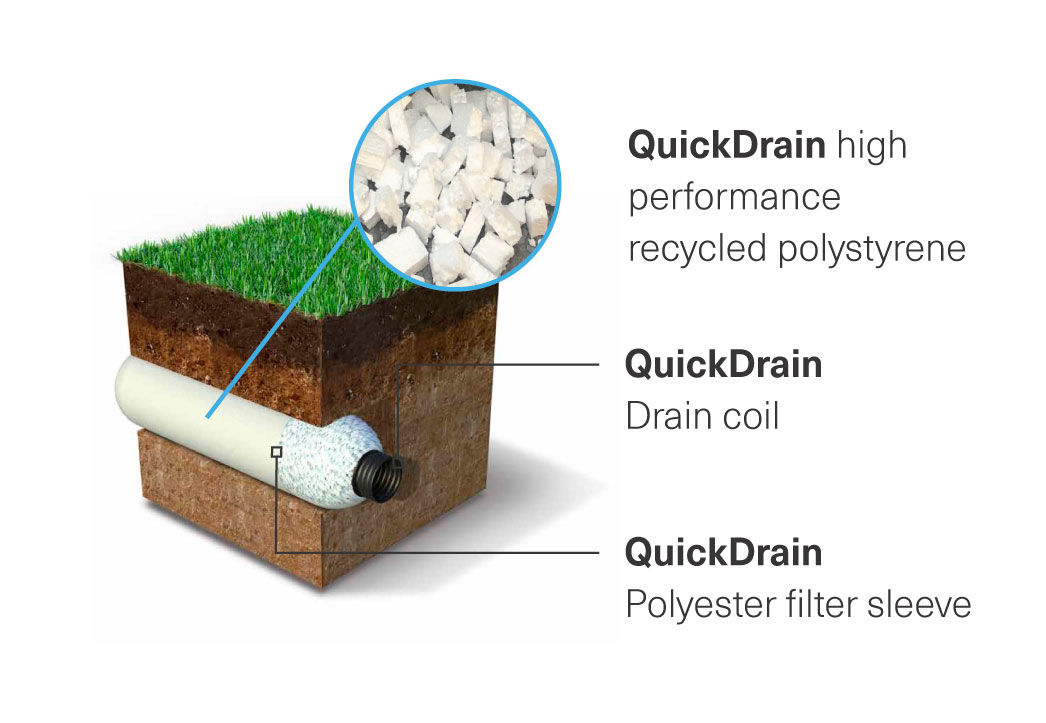

QuickDrain incorporates a recycled polystyrene aggregate that provides enhanced drainage performance, strength, filtration and longevity.

EXPOL Retaining Wall Protection

EXPOL QuickDrain - The no scoria drainage solution

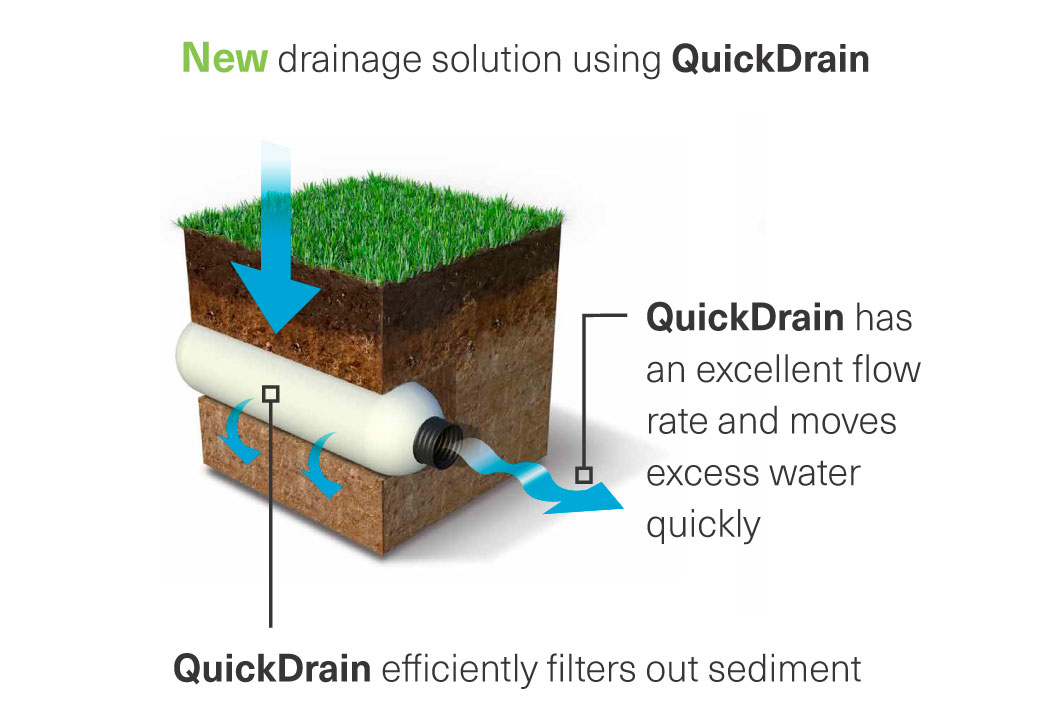

EXPOL QuickDrain in ground.

EXPOL QuickDrain and StyroDrain System working together to deliver a Retaining Wall Drainage Solution.

The QuickDrain solution is a faster and easier install than traditional drainage solutions.

Once buried the QuickDrain will last indefinitely (50+ years) as it is produced from HDPE plastic, recycled polystyrene and PET fibre, however the drainage performance will be dependent on the overall design.

EXPOL QuickDrain includes recycled content and can be easily recycled.



The benefits:

  • Faster and easier to install than traditional drainage solutions
  • Enhanced drainage and filtration performance
  • Strong and long lasting
  • Flexible around corners
  • Can be joined to fit the exact length of your project

EXPOL QuickDrain has been tested by WSP OPUS International Consultants Ltd.

It is used as a solution to remove excess water from retaining walls and water logged areas:

   Retaining Walls QuickDrain

Drainage Solutions QuickDrain

   Drainage Solutions QuickDrain

Drainage Solutions QuickDrain

EXPOL VIDEOS

QUICKDRAIN THE NO SCORIA DRAINAGE SOLUTION

QUICKDRAIN CUTS INSTALLATION TIME IN HALF

System Components

EXPOL supplies joiners to connect one length of QuickDrain to another. EXPOL’s range of available components is listed below:

Straight Joiner

1 x straight joiner comes with every length of QuickDrain.

Y Joiner

Where you need to change direction and join one length of QuickDrain with two you can use a Y joiner.

Available from local hardware stores.

Installation Instructions

  • QuickDrain comes in easy-to-handle 2.5 metre lengths. Each length comes with a QuickDrain Joiner and cable tie.
  • Dig your trench the same width as your QuickDrain and deep enough to allow a minimum of 200mm of soil coverage.

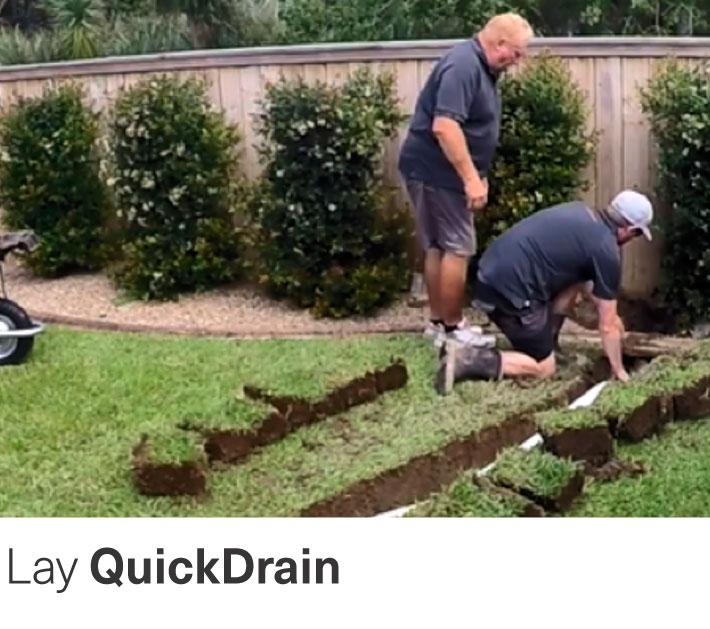

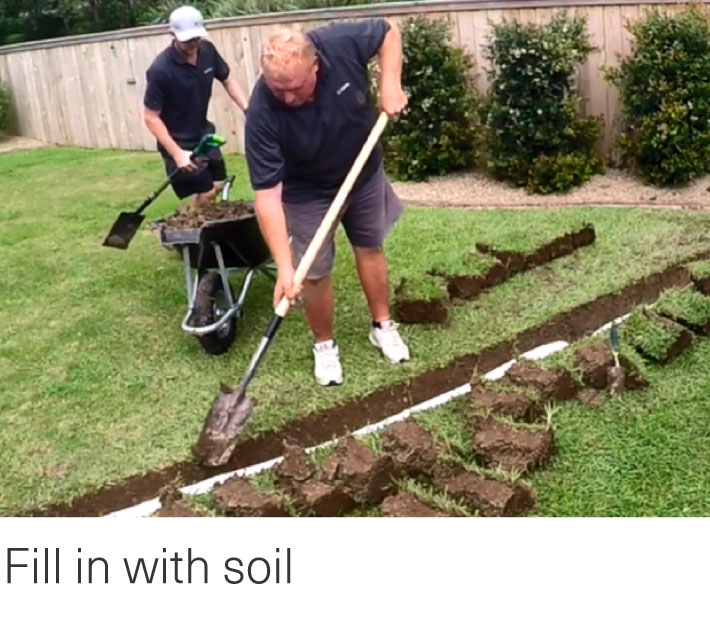

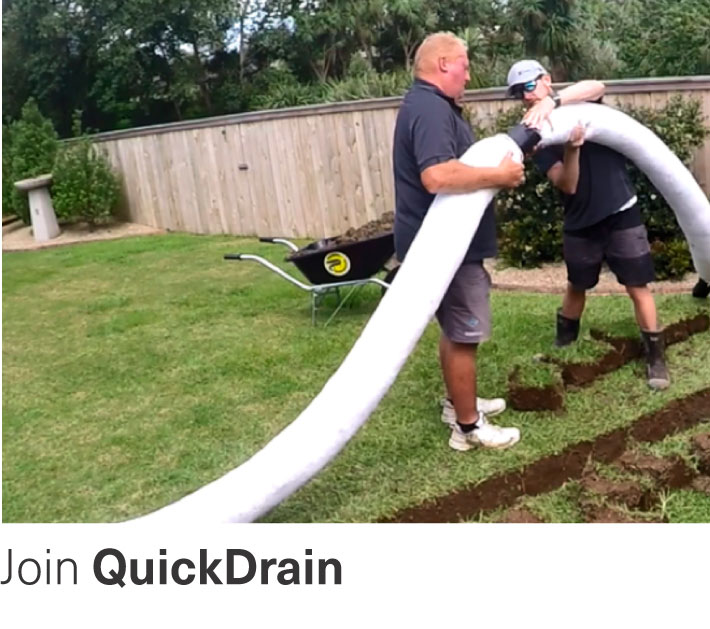

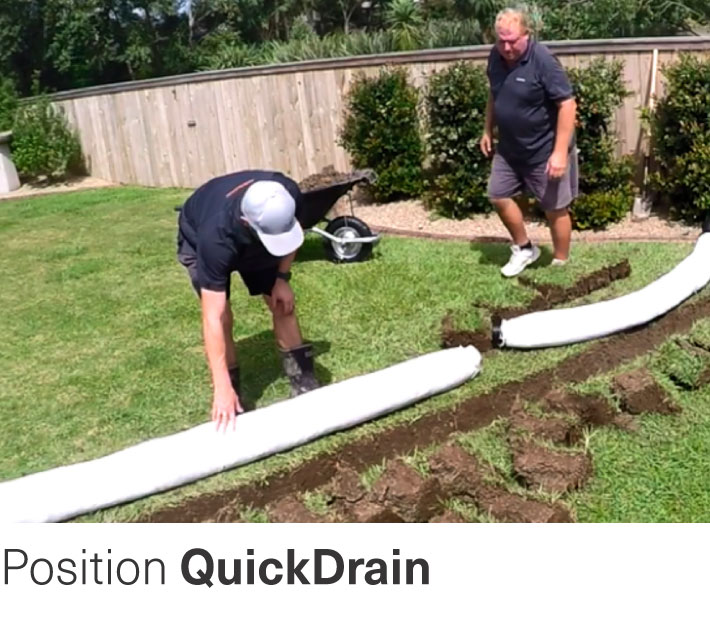

  • Simply clip the length together to achieve the required length for your project. Once the QuickDrain has been laid in the trench you are ready to start covering the QuickDrain.

Once QuickDrain is buried it will last 50+ years as it is produced from HDPE plastic, recycled polystyrene and PET fibre, however the drainage performance will be dependent on the overall design.

When laying QuickDrain please ensure it has a fall. Make sure it is directed to the lowest point of your property and is connected to a stormwater outlet. Exposure of QuickDrain to sunlight for prolonged periods should be avoided.

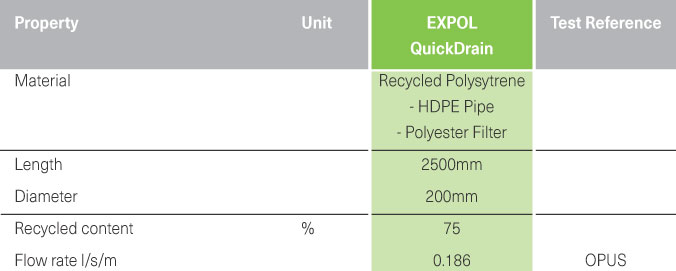

Technical Information

Drainage Solutions QuickDrain

FAQs

What lengths does QuickDrain come in?

EXPOL QuickDrain comes in 2.5 metre lengths.

Can QuickDrain be used in heavy traffic areas?

No it cannot.

DOWNLOADS

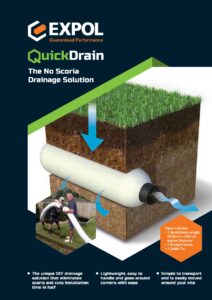

EXPOL QuickDrain Brochure

FURTHER INFORMATION

EXPOL QuickDrain has been tested by WSP OPUS International Consultants Ltd.

MANUFACTURING STANDARD

All products and grades of Expanded Polystyrene EXPOL supplied for retaining wall solutions comply with manufacturing standard AS 1366 Part 3 1992.

For further, detailed information on all products contact EXPOL 0800 86 33 73
