EXPOL R3.1 BLACK UNDERFLOOR INSULATION

EXPOL’s New Generation, high performance insulation range is consciously designed and engineered to meet the new Building Code Regulations introduced on 1 May, 2023.

Our goal is to reduce our carbon footprint and deliver dryer, warmer, healthier and environmentally friendly spaces.

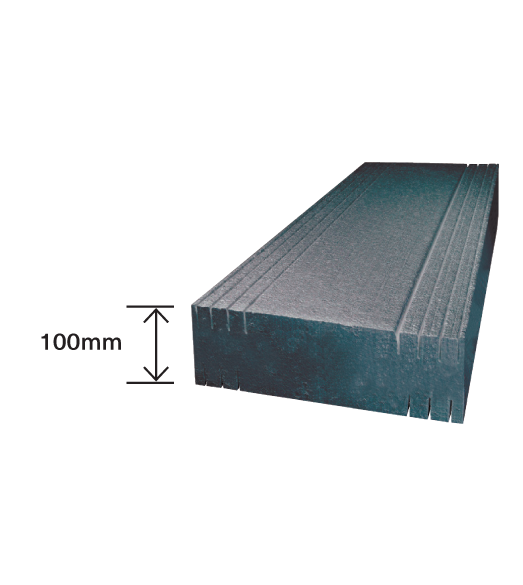

EXPOL R3.1 is a rigid black panel infused with graphite making it up to 24% more efficient than other polystyrene panels. EXPOL R3.1 is ideal for extremely cold temperatures and windy environments and can be recycled. Manufactured from graphite infused black Expanded Polystyrene material, 1200mm in length, 100mm thick in four standard widths 360, 410, 470, 560.

Backed by a EXPOL 50 Year Product Warranty giving you the satisfaction of knowing that you will have a warmer, drier, healthier home in winter.

EXPOL UnderFloor Insulation is available from participating hardware stores nationwide – find your local outlet here.

DO NOT STORE IN DIRECT SUNLIGHT
Product could be damaged and warranty will be void.

EXPOL UnderFloor R3.1 Black Insulation can be easily recycled.

The benefits:

24% more efficient than EXPOL R2.5 Insulation
EXPOL 50 Year Product Warranty
Can be easily recycled
Panel rigid flame retardant
4 Joist measurements; 360, 410, 470 & 560mm
Easy to Install with concertina cuts which allow for compression of up to 20 mm
Resistant to moisture
No nutritional value to vermin, birds or animals
Four standard widths to fit between most standard joists
Ideal for both retro-fit applications and new floors

INSULATION STANDARD

All EXPOL timber floor insulation solutions comply with the Australian and New Zealand Standard AS/NZS 4859.1:2002.

MANUFACTURING STANDARD

All panels have a yellow stripe down one edge to confirm compliance with manufacturing standard AS 1366 Part 3 1992 for SL grade.

It is used as an insulation solution for:

Timber UnderFloor

UNDERFLOOR INSTALLATION GUIDE

CLICK HERE

CALCULATOR

Underfloor 2.5 & 3.1

Area to be insulated

m² feet²

Number of Packs Required - choose width

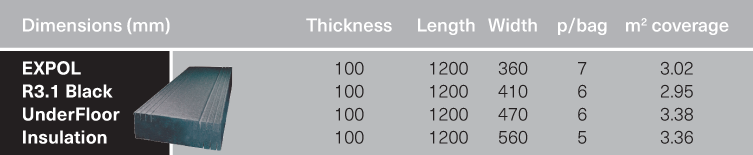

Panel Sizes

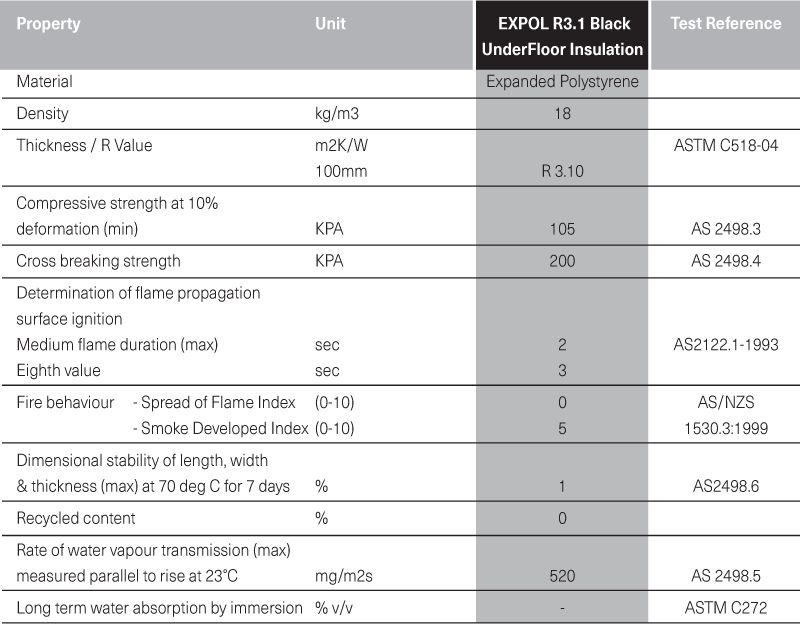

Product Properties

EXPOL UNDERFLOOR VIDEOS

CLICK HERE

EXPOL UNDERFLOOR FAQs

CLICK HERE

EXPOL Installation Components

Fixings

There are two types of fixings specific to existing floors and new floors. They are made from non-corrosive nylon and are used to fix the EXPOL panels in place.

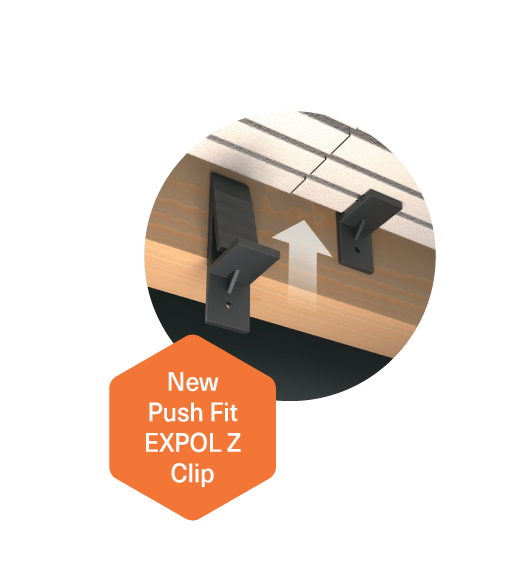

Existing Floors: EXPOL Z Clips are designed as a push fit between the panel and the joist.

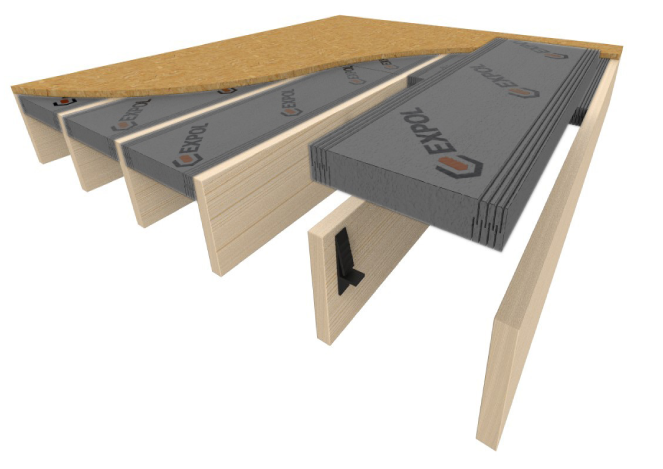

New Floors: EXPOL Joist Saddles for R2.5 & R3.1 (extended length) are designed to slip over the joist to support and secure the 100mm panel.

EXPOL WireGuard

EXPOL WireGuard a waxed paper strip to separate exposed electrical cables from the EXPOL insulation. Expanded Polystyrene in some cases reacts with the plasticiser and degrades the elastic properties of some electrical cables over a prolonged period.

Styro-FIX Construction Adhesive

Styro–FIX is an advanced single component polyurethane-based construction adhesive.

This powerful adhesive is developed especially for the construction industry and will bond most types of construction materials including timber (damp and dry), concrete, plasterboard, polystyrene and many other porous and non-porous substrates.

It bonds expanded polystyrene to most surfaces, delivers strong adhesion and rapid cure, it is gun-able and non-drip.
