EXPOL EX1300
The EX1300 is a portable, site-ready cutting solution engineered specifically for use with EXPOL polystyrene products.
EXPOL EX1300 Polystyrene Cutter
The EXPOL EX1300 Hot Wire Polystyrene Cutter is a robust, portable tool designed for precise cutting of polystyrene products like GeoFoam, SLABX200, and Tuff Pods. Ideal for construction sites, it enables quick and clean modifications to insulation materials, accommodating various design requirements.
EXPOL Hot Wire Polystyrene Tuff Pod and GeoFoam EX1300 cutters are a portable solution for cutting polystyrene on building sites. Rather than using a hand saw that creates mess and can be detrimental to the environment the EX1300 allows the user to achieve accurate and clean cuts through polystyrene leaving little or no mess.
The EX1300 easily cuts Tuff Pods and GeoFoam to different sizes and enables you to cut channels and groves through the Tuff Pods and GeoFoam to accommodate plumbing services.
Model: EX1300 Transformer
The EX1300 transformer has been designed to heat a hot wire at a specific length of 1300mm from terminal to terminal. Only EX CC 0.7mm copper coated cutting wire can be used with this transformer.
The use of unsuitable cutting wire may cause damage to the transformer. Order EX CC 0.7mm cutting wire from EXPOL as required.
EXPOL New Generation - Superior Performance

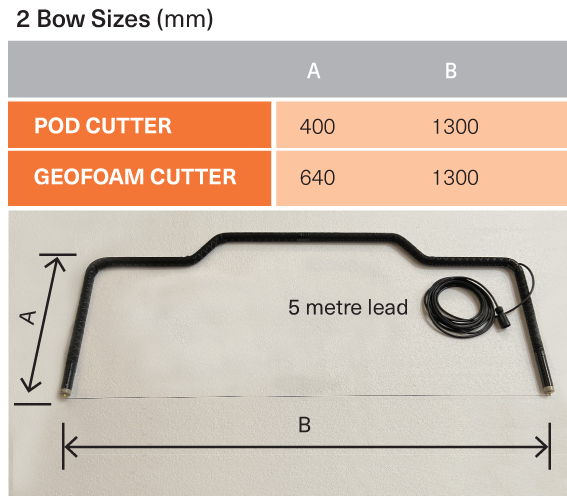

EX1300 Cutting Bow
The EX1300 aluminium bow is made from 25mm diameter thick wall tube and stands up to knocks on building sites. It has an insulator at each end and a 5 metre lead that plugs into the transformer.
The bow comes in two sizes:
EXPOL EX1300 Hot Wire Cutters are only sold in conjunction with EXPOL polystyrene products.
CAUTION:
- •The EX1300 Hot Wire Cutters will not cut wet polystyrene.
- •The transformer is not 100% waterproof and should always be protected from adverse weather conditions. Store undercover when not in use.
- •The wire gets very hot during operation and will burn you if you touch it.
Disclaimer: EXPOL Ltd. will not be held responsible for any injuries caused to persons nor will EXPOL Ltd be liable for any costs incurred through damage caused to property as a result of negligence or improper use of this transformer and or hot wire pod cutting bow.
EX1300 Specifications & Sizes
Key specifications for the EXPOL EX1300 Hot Wire Polystyrene Cutter, as described on this page.
| Specification | Detail |
|---|---|
| Model | EX1300 Transformer |
| Hot wire length | 1300mm, terminal to terminal |
| Compatible cutting wire | EX CC 0.7mm copper coated cutting wire only |
| Bow construction | Aluminium, 25mm diameter thick wall tube, insulator at each end, 5 metre lead |
| POD Cutter bow size | 400mm x 1300mm |
| GeoFoam Cutter bow size | 640mm x 1300mm |
| Compatible products | GeoFoam, SLABX200, Tuff Pods |
| Sale conditions | Only sold in conjunction with EXPOL polystyrene products |
Source: product information as published on this page. For further detail, contact the EXPOL Tech Team.
